MODEL: BY-S-DL
Automatic laser marking equipment is combined with the actual production needs, customized plans to realize the marking production process from semi-automatic to automatic and the whole marking process has been automated, saving enterprise labor costs and improving production efficiency.

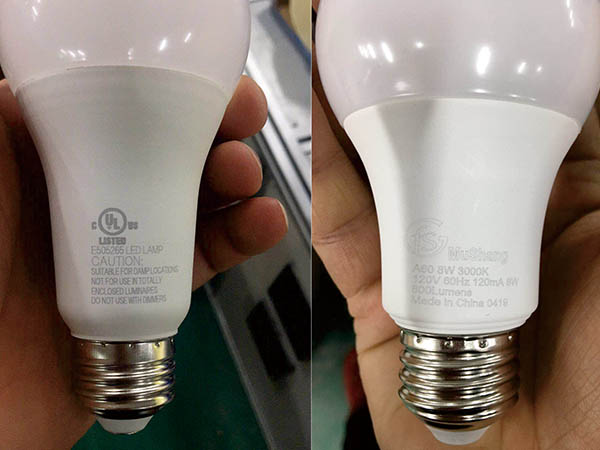

Suitable for marking of various LED lamps, and non-standard automatic marking in other industries.We can also provide various professional automation program design and automation engineering services based on our ability to integrate research,development, production, sales and service.

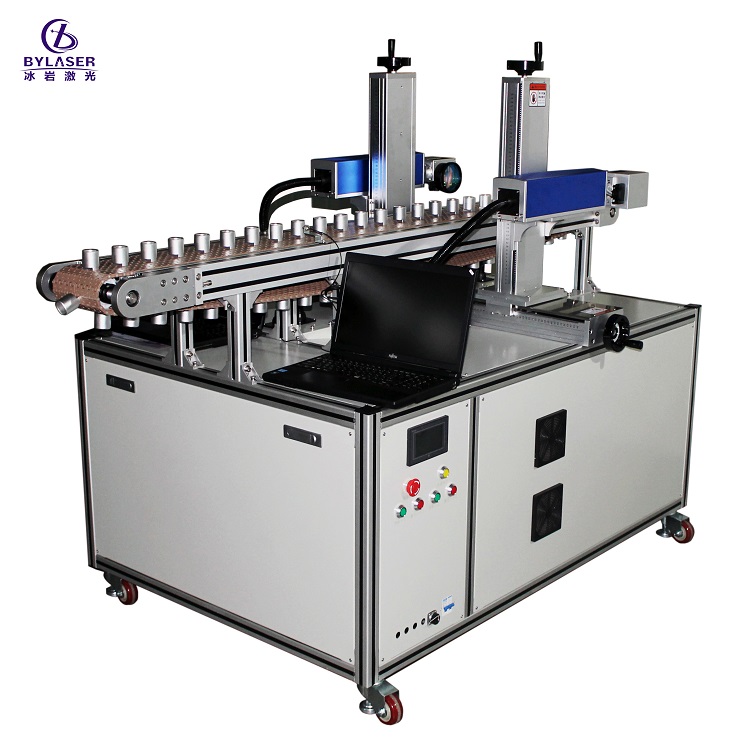

The automatic marking machine for LED lamp is developed and designed by our company for the production industry of LED lamp.
The equipment meets the requirements of high production speed,large demand and fine marking in the industry.
Customized production can be carried out according to different needs of customers.
| Laser power | 30W |
| Laser wavelength | 1065±10nm |
| Laser beam | M2: <1.4 |
| Rate | 20-80Khz |
| Marking area | 175*175mm |
| Marking Speed | ≤7000mm/s |
| Engraving Depth | 0.01mm-0.4mm (According the material) |
| Consumed Power | ≤1500W |
| No. of the laser marker | 2sets |
| Servo motor | 400W |
| Customized Fixture | 50pcs（46pcs for actual use，4pcs as spare） |
| Production Efficiency | approximate 2500pcs /hour |
| Power | 220V±10%/50Hz/4A, |
| Laser mould lifetime | ＞100000h |
| Type of cooling | air cooling |
| System | control system、industrial computer、assembly line、marking system |
| Environmental conditions | no or less dust. |
| Temperature | 10°C to 35°C |
| Humidity | 5% to 75% |
