Backpack Mobile type pulse fiber laser cleaning machine 50W 100W 200W

Backpack Mobile type pulse fiber laser cleaning machine

Model: BY-CL

  • Applicable industries: Shipbuilding, auto parts, rubber molds, high-end machine tools, rail transit, environmental protection
  • One-year warranty for the whole machine, and two years for the laser source.

Scope: Remove rust, remove paint, remove oil stains, remove the oxide layer, remove graffiti wall, coating removal

100W Total weight about 16kg, cleaning head is only 750g, convenient to hold, quick to clean!

Laser power:50w、100w、200w

EMAIL: [email protected]
Whatsapp: +86 13781961057

describe



This cleaning equipment can efficiently remove resins, grease, stains, dirt, rust, coatings, plating layers and paints on the surface of workpieces without chemical, water or other working media, meeting the cleaning requirements of complex shapes and fine positioning in the field of industrial processing, and achieving cleaning effects with higher cleanliness and higher comprehensive costs.



Technical Parameter
Laser power 50W,100W,200W
Laser source JPT/Max  (optional)
Laser type Fiber laser
core components laser source
Warranty of core components 1 years
Laser source type Pulsed Fiber
Fiber length 1.5m
Scanning range (length * width) 0-100mm ccording to the lens), continuously adjustable,

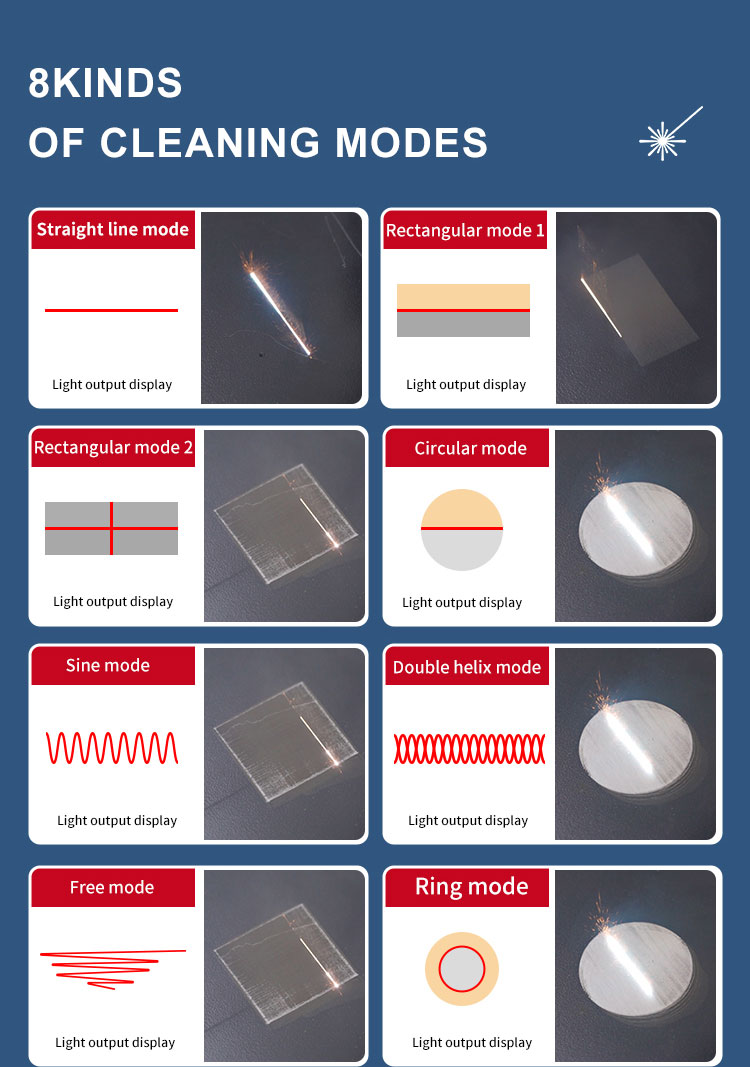

Dual axis supports 8 kinds of scan modes
Applicable Material Stainless steel, Carbon steel, Aluminum, Wood, Stone, Metal
Net weight 16kg
Dimensions(L*W*H) 336mm x 129mm x 540mm
Voltage 220V/Customized
Cooling method Air Cooled
Cleaning Type Handheld Laser Gun
Video outgoing-inspection Provided
Machinery Test Report Provided





Product features:

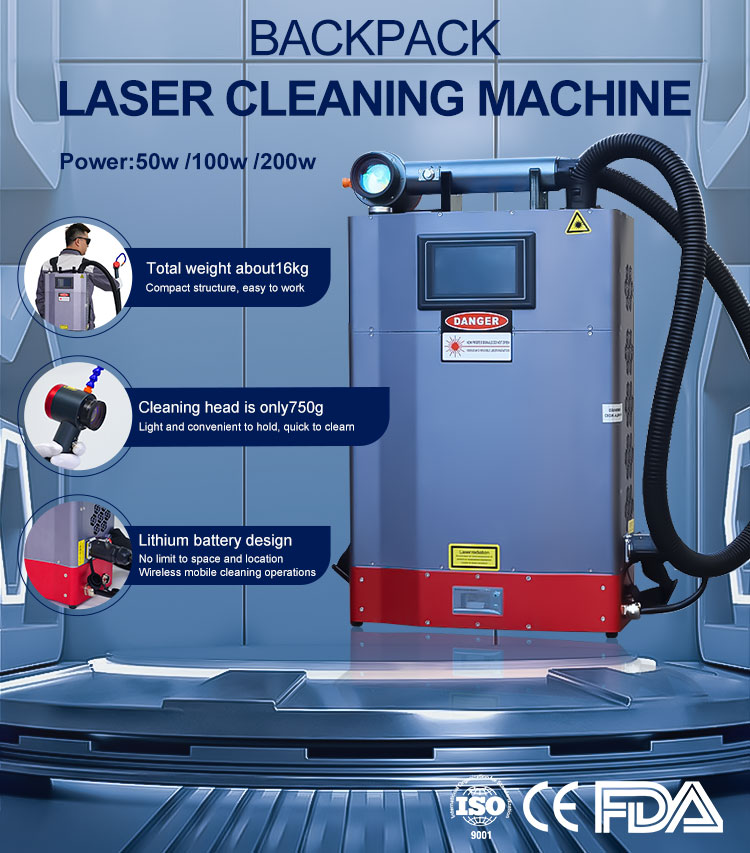

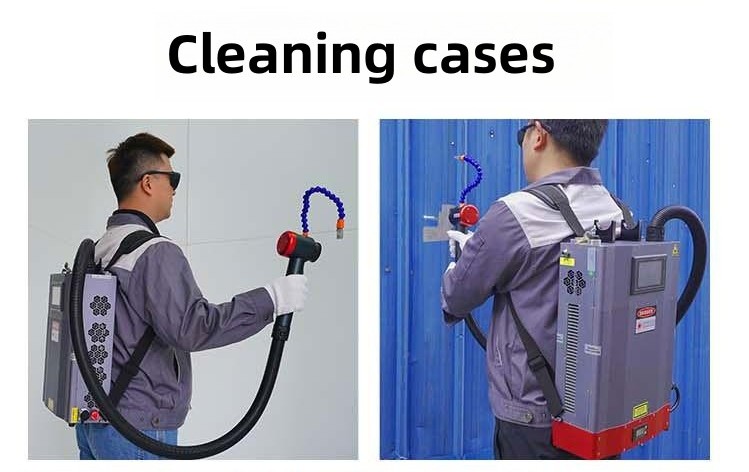

  1. Backpack design, light weight, only 16kg, suitable for outdoor and high altitude cleaning.

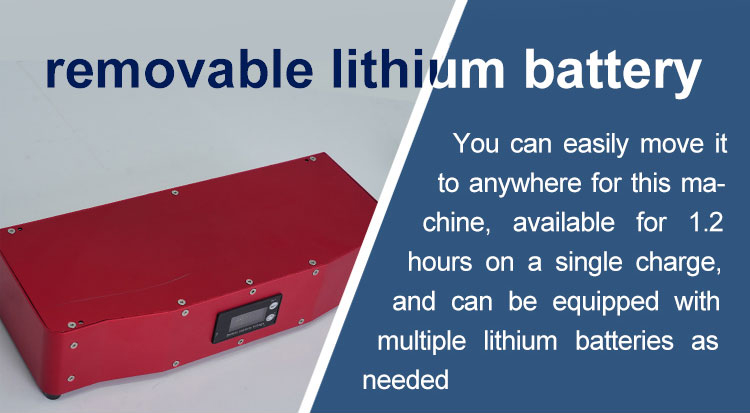

  2. Equipped with lithium battery to extend working time
    Handheld operation, the scanning head weighs only 0.75kg, easy to operate for a long time.
  3. Non-contact cleaning, high-precision cleaning, no damage to the substrate material after cleaning.
  4. Offline operation, no need for power supply.
  5. Cleaning width can be easily adjusted from 10-100 mm.
  6. Energy efficient and pollution free.

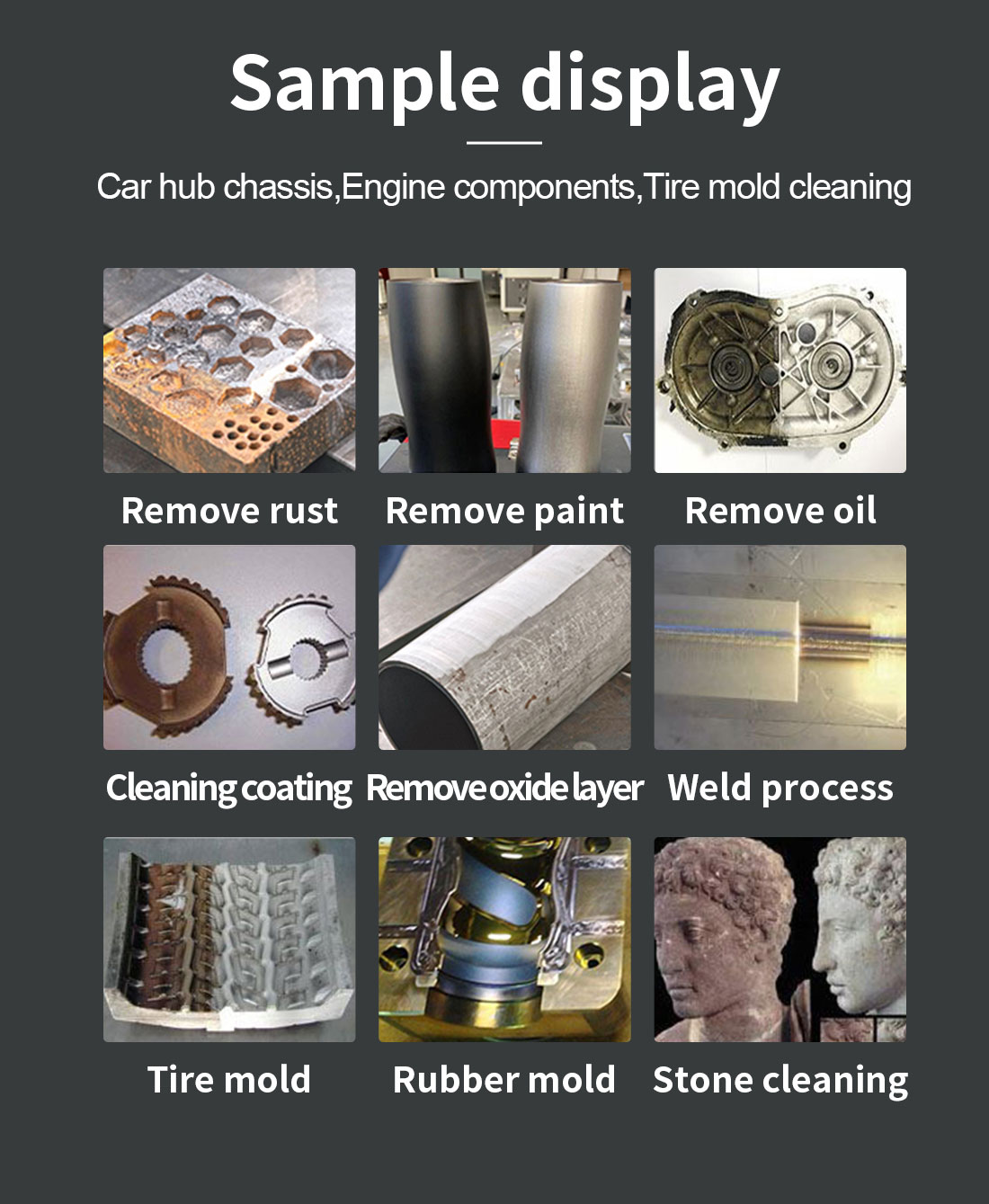

Application:

1.Quickly removes rust and various oxides
2.Paint removal from metal surfaces
3.Cleaning of artefacts, rock cleaning, external surfaces of buildings, etc.
4.Removal of oil stains from precision parts during production processing
5.Various moulds cleaning, such as: tyre moulds, rubber moulds, food moulds, injection moulds, etc.
6.Weld cleaning: removal of welding residues
7.Removal of surface residues such as oil, gum, stains, etc.
