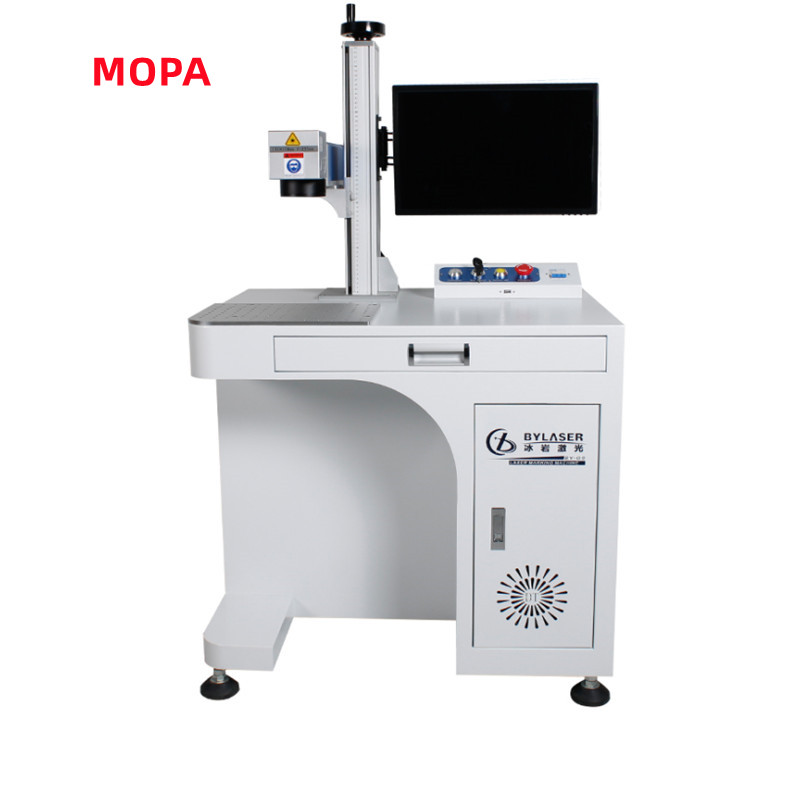

Product name: JPT MOPA M7 Desktop-type fiber laser marking machine
Laser source: JPT M7 series

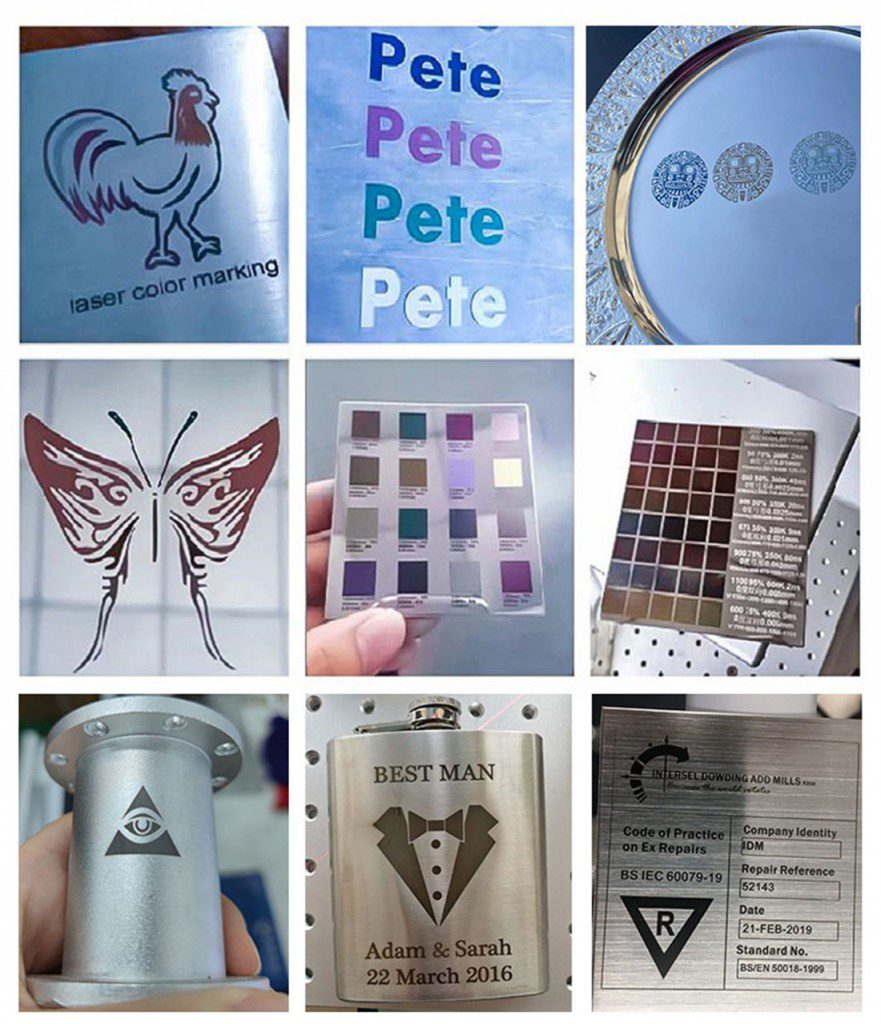

Application: stainless steel color marking, aluminum oxide black marking, metal engraving
Laser Power:20w/30w/50w/60w/80w/100w
MOPA Advantage: adjustable frequency pulse width, apply for more material than normal fiber laser marking machine
We have 13 years of laser equipment experience, Exported over 100 countries， CE、FDA、ISO9001 Certificated, if you have any need for laser marking and engraving, Customized Machines based on Your Needs
We have signed strategic cooperation agreements with major component manufacturers like (JPT, RAYCUS, DAVI, ZBTK, and SINO-GALVO) , which enable us to offer more competitive prices.
first-line accessory: JPT laser source
Two-year warranty; delivery to door, after-sales service： response to you within 12 hours
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Application
1：Applicable to studios： metal jewelry, gold and silver laser cutting, necklace, 3D effect, photo marking, metal cards, dog tags, cups, customization, etc
2：Applicable to the factory： Machine parts, hardware tools, plastic products, medical instruments, etc
3：Flying type machine(for production line)： Pipeline cable， Packing box date， bottle cap
parameter
| Model | BY-20GS-A/B/C | BY-30GS-A/B/C | BY-60GS-A/B/C | BY-80GS-A/B/C | BY-100GS-A/B/C | BY-120GS-AB/C |
| Marking Area | Optional 110X 110mm(4.3X43in) |
|||||
| 150X 150mm(5.9X59in) | ||||||
| 175X 175mm (6.9×6.9in) | ||||||
| Laser Type | JPT M7 | |||||
| Pulse Repetition Rate Range | 1-4000kHZ | |||||
| Pulse Duration | 2 ~ 350ns | 2 ~ 500ns | ||||
| Output power adjustment range | 0%-100% | |||||
| Marking Speed | ≤7m/s(275. 6in/s) | |||||
FAQ
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2010, now in Luoyang CN.
welcome for factory inspection at any time.
2. Q: What should I do when something goes wrong with the laser?
A: We offer a two-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
Please send us your request and we will reply to you within 24 hours.
