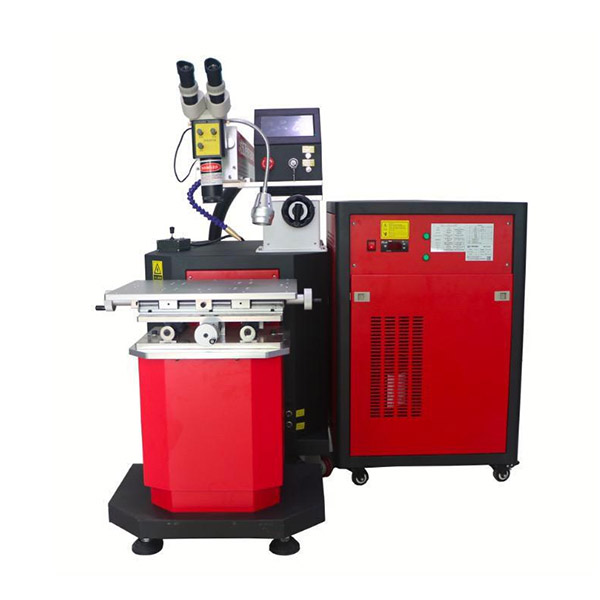

Mold YAG laser welding machine

MODEL:BY-YW-M

MAXIMUM LASER POWER:200W/400W/600W

THE LASER WAVELENGTH:1064nm

THE LASER FREQUENCY:1-20Hz

CONDENSER REFLECTOR:Imported ceramic condenser

APPLICATION

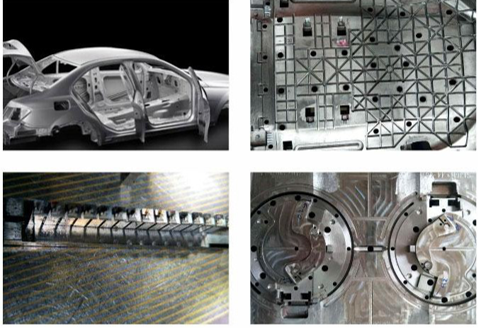

Suitable for mobile communication, jewelry crafts, electronic components, watches, sensors, precision machinery, mold repair, hardware, auto parts, and various metals and alloys.

FEATURES

Adopt imported ceramic concentrating cavity, high reflectivity, with strong energy, high temperature resistance, corrosion resistance and long service life.

Equipped with1.5P special chiller, can meet the long-term, high-power welding stability, (remarks: 400W with 3P chiller)

Equipped with three-dimensional load-bearing base for electric lifting, the table moves using precision ball screw and high- precision straight guide rails,which are light and flexible, accurate positioning, the bearing capacity up to 200 kg.

The laser head can slide back and forth, manual lifting, it can also be easily rotated 180 degrees, convenient to repair any side.

Equipped with gas protection system to effectively protect the product from argon gas protection during the welding process, and maintain the natural color of the product.

PARAMETERS
Type YAG LASER
Maximum laser power 200W/400W/600W
The laser wavelength 1064nm
Condenser reflector Imported ceramic condenser
The laser frequency 1-20Hz
The pulse width 0.1-10Ms
Spot adjustment range 0.3-2mm
Aimed at positioning Microscope (optional camera  system)
cooling-water machine  refrigerating power 1.5P
Rated power 8KW 12KW
380V±5V 50Hz/40A /220V±5V
50Hz/60A
Three dimensional  bearing table bearing 125×100×300mm 150kg
External dimensions/net  weight Host computer:  1000×550×1150mm 103kg
1.5P cooling-water  machine:  1.5P: 550×550×850mm                        3P: 800×640×1200mm 1.5P:80kg  3P: 125
3D load-  bearing table 57kg
